Howden AeroFlow — Engineered Airflow for Critical Industrial Applications
From 500 m³/h to 600,000+ m³/h. Axial fans, centrifugal fans, roots blowers, and process ventilation systems designed, tested, and deployed in 45 countries.
From 500 m³/h to 600,000+ m³/h. Axial fans, centrifugal fans, roots blowers, and process ventilation systems designed, tested, and deployed in 45 countries.
Howden AeroFlow delivered a complete FD/ID fan system for our 2x300 MW coal-fired units. The CFD-optimized impeller design exceeded our static pressure requirements by 8% while running 12 dB(A) below the contractual noise limit. Commissioning was completed 3 weeks ahead of schedule.
Performance-tested airflow solutions for the most demanding industrial environments
Adjustable-pitch and fixed-blade axial fans for forced draft, induced draft, and tunnel ventilation. Air volumes from 5,000 to 600,000+ m³/h.
View Range
Single-inlet and double-inlet centrifugal fans with backward-curved, radial-tipped, and forward-curved impellers for high-pressure process air systems.
View Range
Positive displacement rotary lobe blowers for pneumatic conveying, wastewater aeration, and combustion air supply. Pressures to 1.0 bar gauge.
View Range
Low-pulse, high-efficiency rotary lobe blowers with integrated silencers for continuous-duty applications requiring oil-free air delivery.
View Range
Oil-injected and oil-free screw compressors for process gas, refrigeration, and vapor recovery applications. Capacities from 50 to 5,000 m³/h.
View Range

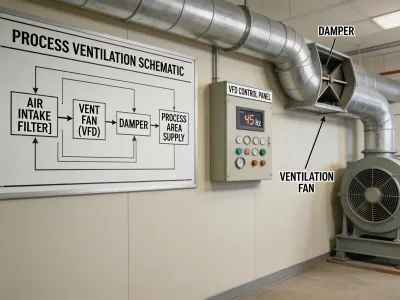

Turnkey ventilation packages including fan selection, ductwork design, VFD integration, damper control, and noise attenuation for complete installations.
View RangeEngineered for the specific airflow demands of each sector
FD, ID, and PA fans for coal, gas, and biomass power plants. High-temperature capability to 450°C with erosion-resistant coatings.
Main and auxiliary mine ventilation fans with reversible airflow, explosion-proof ATEX certification, and remote monitoring capabilities.
Process fans for kiln exhaust, clinker cooling, and raw mill draft systems. Abrasion-resistant impellers for high-dust environments.
EC and VFD-driven cooling fans for precision air handling. Ultra-low noise operation meeting Tier III/IV facility requirements.
Supply and return air fans for air handling units, rooftop units, and building pressurization. ASHRAE 90.1 and Eurovent certified performance.
Roots blowers and rotary lobe blowers for aeration basins. Continuous-duty rated with VFD control for dissolved oxygen optimization.

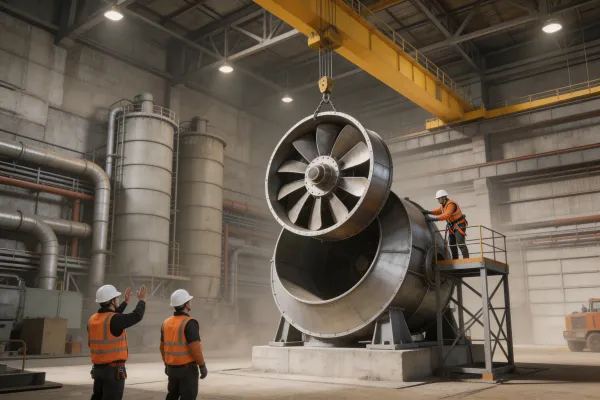

In Q3 2024, a Southeast Asian cement producer operating a 5,000 TPD clinker line contacted us after their existing kiln ID fan suffered repeated impeller failures at 14-month intervals. The root cause: the original mild steel impeller was undersized for the actual dust loading (120 g/Nm³) and gas temperature (380°C) of their high-alkali raw meal process.
Our engineering team redesigned the impeller using Corten A steel with tungsten carbide overlay on all leading edges and 50% of the blade surface. We also increased the impeller diameter by 80 mm to shift the operating point away from the stall region, reducing tip speed from 142 m/s to 135 m/s while maintaining the required 280,000 m³/h at 3,200 Pa static pressure.
Result: the retrofitted fan has been operating continuously for 8 months with vibration levels at 2.1 mm/s RMS — well within the ISO 10816 Zone A threshold of 2.8 mm/s. The projected impeller life is 36+ months based on wear monitoring data, reducing annual maintenance cost by approximately $85,000 compared to the original 14-month replacement cycle.
Our application engineers provide fan selection, CFD analysis, noise prediction, and lifecycle cost calculations for your specific operating conditions.
